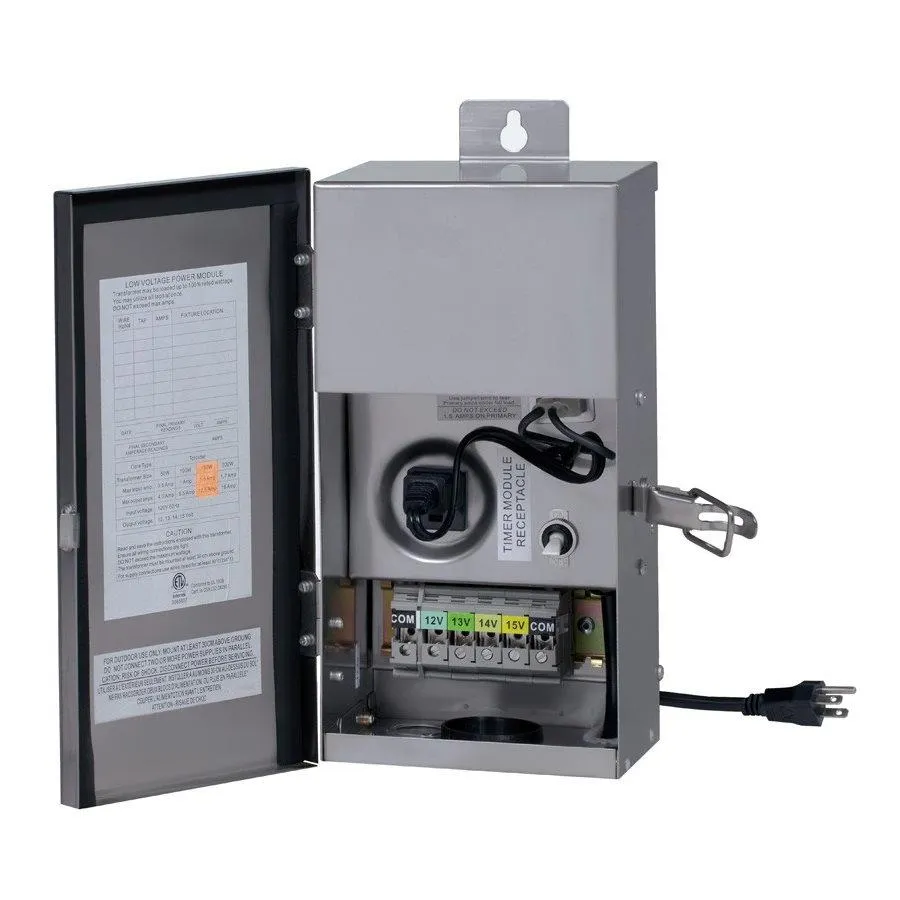

Name: Corona Lighting T-TR150 T-TR Multi-Tap Series 150W, Single Circuit Transformer
SKU: 419141

Wattage: 150W
Primary Voltage: 120V
Secondary Voltage: 12V, 13V, 14V, 15V
Primary Protection: Thermal shut-off
Secondary Protection: High performance magnetic circuit breaker. May also be used as on/off rocker switch.
Terminal Block: Large terminal block for multiple low voltage cable connections.
Cable cord: 6-foot, heavy gauge, grounded and water resistant power cord with molded plug
Core: Fully encapsulated TOROID core
Timers & Photocell: None
Wire Rating: Internal wires are rated at 125°C (257°F)
Certification: Class 1 Transformer. ETL listed to U.S. safety standards for landscape lighting transformers (UL1838). Pool and spa ready, suitable for use with submersible fixtures.
Warranty: Limited lifetime on coil and enclosure. One year on mechanical timer and photocell. Two year warranty on digital timer

Easy removable stainless steel hinged cover door, allowing great access during installation.
Moisture resistant gasket around cover door.
Over-sized wiring terminal block for easy multiple low voltage cable connections.
Removable bottom plate with prepunched knockouts 3X½” or 3X¾” conduits and 1X1¾” cable feeder for easy entrance of multiple low voltage cables during installation.
Mounting slots on top and bottom for quick mounting without templates.
6-foot, heavy guage, grounded and water resistant power cord with molded plug. The power cord gets through an open hatch, on the right side of the enclosure interior.
Optional 24-hour plug-in mechanical timer and digital timer available.
Optional photocell is available for use with timers or stand alone. Photocell is attached to enclosure, easy knockout.
ETL listed to U.S. safety standards for landscape lighting transformers (UL1838), Pool and Spa ready, suitable for use with submersible fixtures.
Dimensions:
